380V PLC Vibrating-Shell/Shell-Making Equipment | Investment/Lost-Wax and Lost-Foam Casting Process Inquiry
Let’s define your requirement
Send a product link, drawing or short brief. We’ll work through the details with you.
- Confirm the specificationGrade or model, size and intended use.
- Define your orderQuantity, finish or configuration, and samples.
- Agree the quotation scopeIncluded work, key checks and delivery needs.
-
Equipment Supply Voltage380V
-
machine typeShell making equipmentvideo outgoing-inspectionProvided
-
machinery test reportProvidedcore componentsPLC, Motor
-
voltage380vpower(w)customized
-
dimension(l*w*h)910*770*2710mm(35.83*30.31*106.69in)warranty1 Year
-
key selling pointsLong Service Lifeweight (kg)200
-
Cylinder diameter100mmCylinder stroke500mm
-
impact frequency of the pneumatic pick1050 times/minuteimpact energy of the pneumatic pick100J
-
Workpiece working size790*650*560mmProduct namevibrating shell
-
Application fieldsprecision casting equipmentKeywordlost wax casting
-
ColorCustomized ColorUsageMetal Casting Machinery
-
ConditionNewWarranty of core components1 Year
-
Marketing TypeHot Product 2022
-
Applicable Industriesinvestment casting

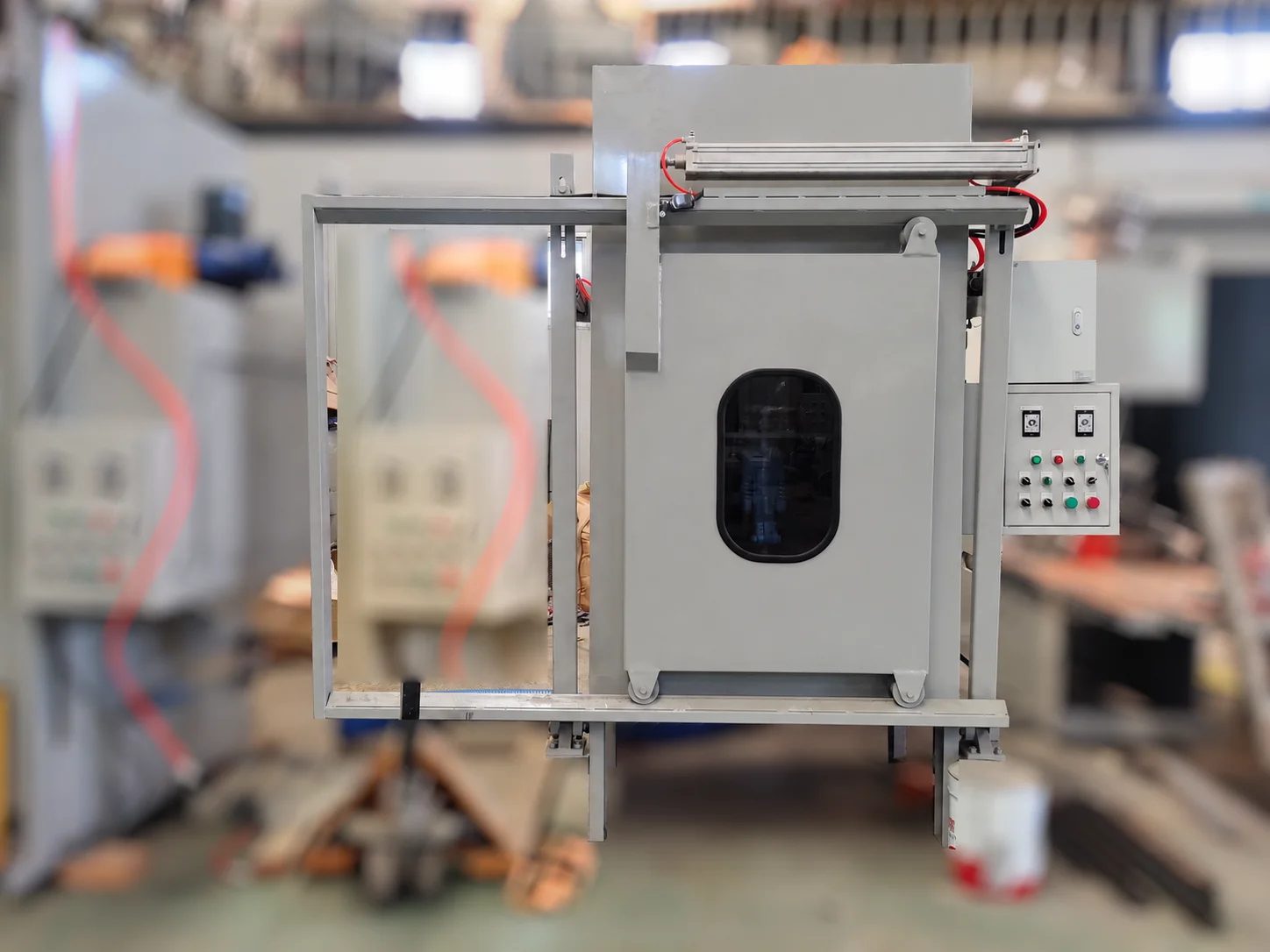

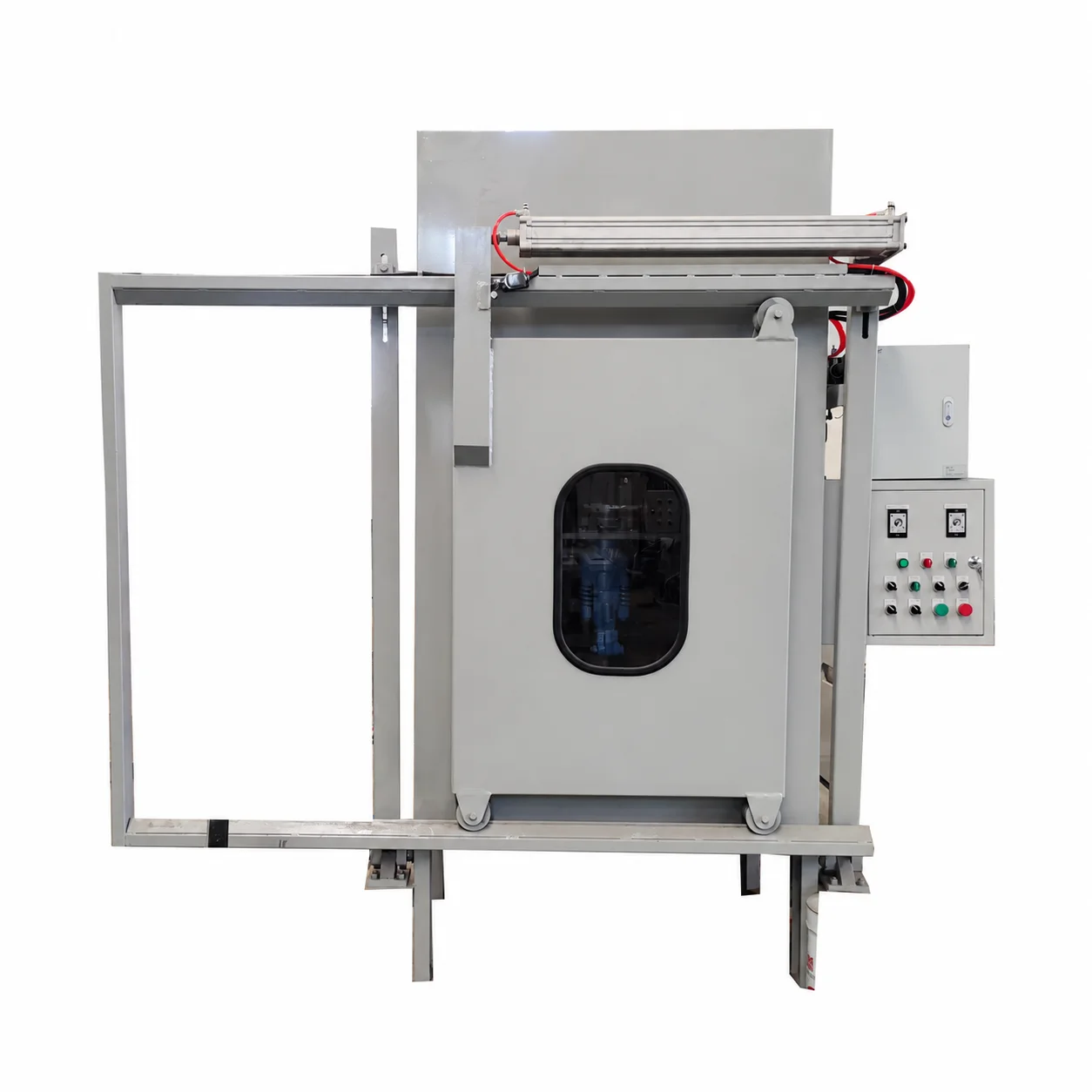

New vibrating-shell equipment is directed to precision investment/lost-wax casting, with shell-making and lost-foam requirements to define for the actual operation. PLC and motor are core components, with a 380 V electrical reference and customized power and color. Long service life is a qualitative selection direction for the chosen machine and working conditions.
Workpiece space and the machine envelope
The workpiece working-size reference is 790 × 650 × 560 mm. Overall dimensions are 910 × 770 × 2710 mm, also referenced as 35.83 × 30.31 × 106.69 in. Connect these different dimensional roles to the actual workpiece, fixture and installation arrangement when defining the casting-stage task.
Cylinder geometry and pneumatic-pick impact
The cylinder diameter is 100 mm and the stroke is 500 mm. Pneumatic-pick impact references are 1050 times/minute and 100 J. Agree the actual operation, workpiece support and required pneumatic-supply conditions around those references, with the pick/cylinder arrangement and finished-workpiece acceptance defined for the selected process.
380 V supply, controls and the selected stage
Define the customized power rating and installation requirements for the actual 380 V configuration. Relate the PLC/motor control and operation scope to the vibrating-shell task, including its relationship to the requested shell-making or lost-foam process. That selected operation and workpiece requirement provide the basis for assessing this casting equipment.
Provided inspection material and custom configuration
Outgoing-inspection video and a machinery test report are provided for the equipment inquiry. Use them with the actual machine configuration and required operating acceptance. The custom color and power requirements should accompany the selected workpiece and control/supply definition so the requested machine scope is clear.
