Custom Copper-Alloy Gear Rings with Drawing-Based Machining
A copper-alloy gear-ring enquiry must distinguish a blank from a finished toothed part. Relia reviews the alloy, mounting datums and machining scope, with the tooth definition and mating requirements included where they form part of delivery.
RELIA · PRODUCT AND MANUFACTURING SUPPORT
Define the ring within the transmission
Relia's copper-alloy ring reference lists customized dimensions and CNC turning. Relia's technical enquiry connects that established scope to the mounting bore, faces and any separate tooth requirement. This helps your team compare the correct supplied state and keep a ring blank's price and inspection scope separate from a finished gear's requirements.
| Your requirement | Relia product and service scope |
|---|---|
| Catalogue scope | Customized copper/copper-alloy ring enquiries |
| Listed operation | CNC turning |
| Quote distinction | Ring blank, machined ring or finished toothed component |
| Required definition | Alloy grade, mounting datum and any tooth specification |
02 · GEOMETRY
Complete the tooth and datum definition
- Controlled geometry
- Provide tooth data and the mounting datum definition.
- Machining requirement
- State the finished interfaces used by your assembly.

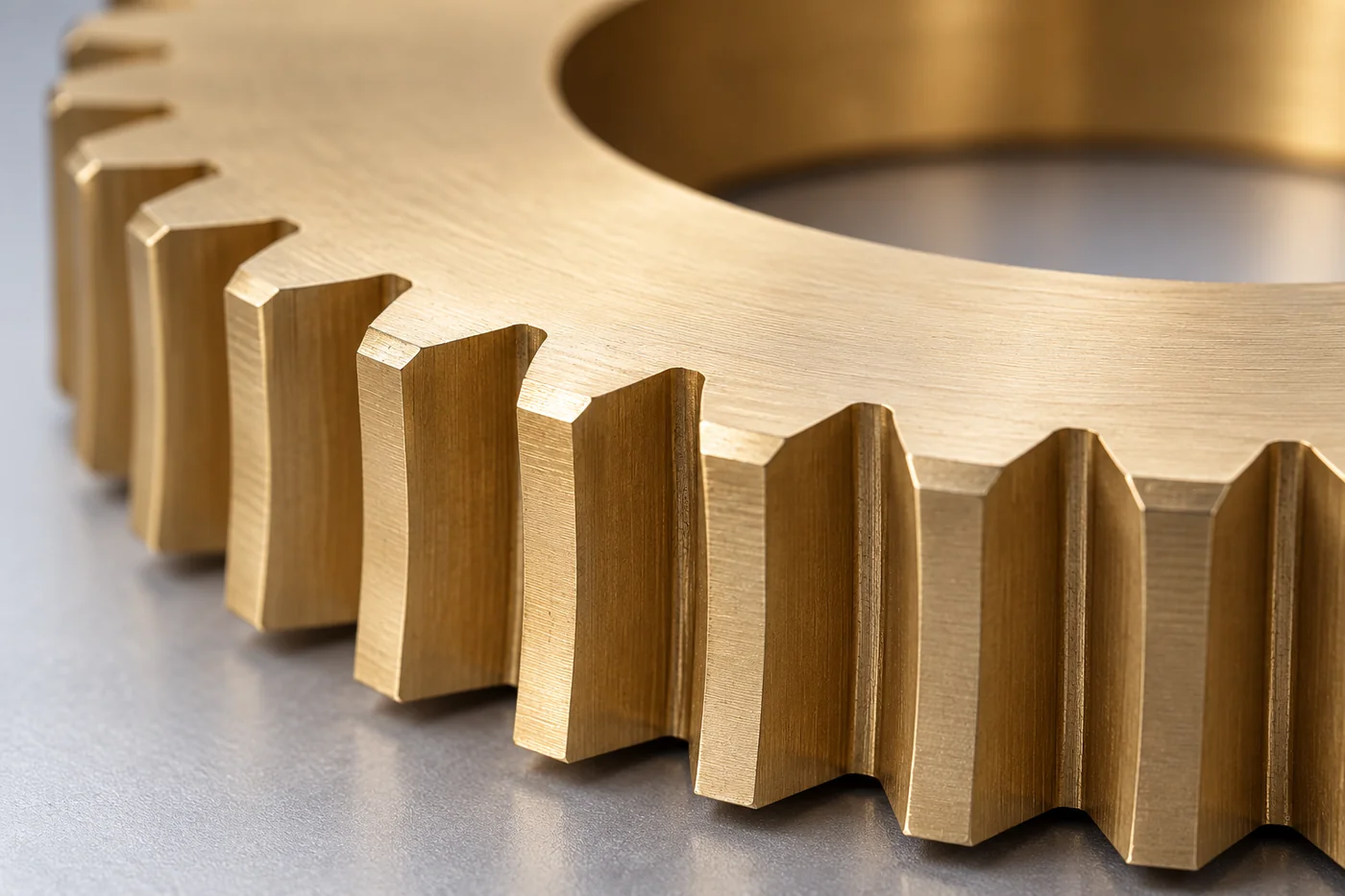

Provide the tooth data, locating datums and finished interfaces your design uses. A product photo helps explain the form but cannot replace the controlled geometry needed for machining.
Technical notes
State the copper-alloy grade rather than using copper, brass and bronze interchangeably. Review the ring blank, machining allowance and the datum used for tooth cutting and mounting. Define any split construction, inserts or other assembly features separately.
MANUFACTURING ROUTE · FEATURES AND CONTROL
Prepare the Ring Datums Before Any Tooth Work
The blank needs the selected copper-alloy grade and enough stock for the specified bore and faces. Relia's turning scope establishes the concentric and axial references used for mounting. If tooth manufacture is part of the order, its method, tooth system and accuracy requirement must connect to those same datums. A finished gear also needs its mating geometry and mesh acceptance defined. This keeps the ring's machined interfaces and any tooth work in one coherent specification without inferring an accuracy class from a product name.
- Define supplied stateBlank, machined ring or toothed component
- Select grade and blankCopper alloy and finished allowance
- Turn the datumsBore, faces and specified runout relationship
- Add the defined gear scopeTooth geometry, mating data and acceptance if included
04 · SCOPE
Separate blank preparation from finished machining
- Initial ring
- Define the blank form and material condition.
- Delivered part
- Identify the tooth, bore and face work included.
Define the initial ring form and the tooth, bore and face work included in the deliverable. We review the manufacturing route against the actual drawing and quantity.
05 · ACCEPTANCE
Agree gear and dimensional checks
For a machined blank, inspect bore, faces and runout as specified. For a finished gear, add the required tooth geometry and contact checks. Do not infer tooth-cutting accuracy or load capacity from a listing that only establishes custom size and CNC turning.
06 · REFERENCE
Retain the approved ring for repeat orders
- Accepted ring
- Retain the drawing, alloy and relevant sample records.
- Later changes
- Review their effect on mounting and mating geometry.
Keep the accepted drawing, alloy and relevant sample records together. A later change should identify its effect on tooth geometry, mounting or the mating relationship.
07 · PURCHASING
Keep the quotation on one technical basis
The material, blank, machining and verification work should describe the same delivered ring. Make open tooth or mounting inputs visible before the scope is agreed.
Technical notes
Provide the finished ring drawing, mating gear and mounting details. If teeth are included, specify the tooth system, module or pitch, number of teeth, accuracy and backlash basis. An outside diameter and material colour are insufficient to reproduce a working gear.
| Quotation area | Retain |
|---|---|
| Geometry | Current tooth and interface drawing |
| Manufacture | Blank and finishing operations |
| Evidence | Required gear and dimensional records |
RELIA · YOUR NEXT PROJECT
Share the tooth data and mounting drawing
Send the gear-ring model, tooth definition, material and quantities. Include the mating relationship and required checks. We can review the blank and finish-machining proposal on a clear technical basis.
Start with these project details
- Ring model and tooth definition
- Alloy and supplied condition
- Blank or finished-part scope
- Quantities and mating checks
