Wax-Injection Equipment for Repeatable Jewelry Pattern Production

Repeatable wax patterns depend on the wax, mould and injection configuration working together. Relia reviews the selected injector's pressure, nozzle, temperature controls and accessories around your actual pattern-making task and acceptance trial.

Discuss your projectPrepare your enquiry

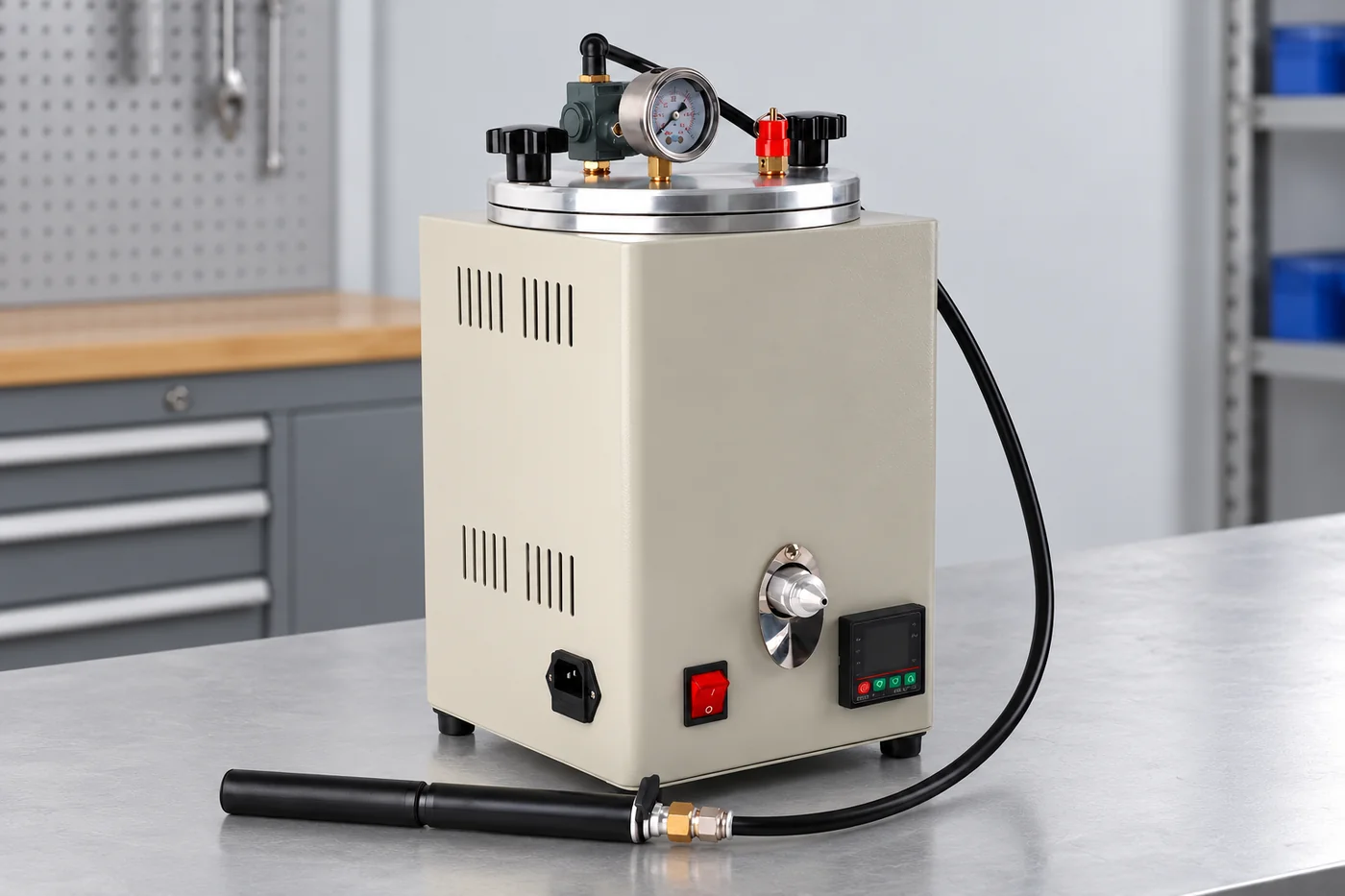

Compact silver wax-injector reference with gauge and nozzle
The mould and pattern requirement establish the wax-station selection brief.

RELIA · PRODUCT AND MANUFACTURING SUPPORT

Identify the pattern-production constraint

Relia's automatic vacuum-injector reference lists a 3 kg tank, 500 W, 220 V and a 55–99.9°C control range; a dual-nozzle reference offers 110/220 V options. Relia's enquiry connects the tank, nozzle, clamp and operating sequence to your moulds. The selected wax's processing sheet determines the starting trial settings within that machine range.

Requirements at a glance
Your requirementRelia product and service scope
Automatic reference3 kg wax tank; 500 W; 220 V
Temperature range55–99.9°C machine control field
AlternativeDual nozzle; 500 W; 110/220 V options
Trial resultFill, flash, dimensions and demoulding on actual patterns

02 · FUNCTIONS

Compare the pressure and nozzle configuration

Mould interface
Identify nozzle, pressure and clamping requirements.
Actual functions
Confirm included vacuum or other selected features.

Confirm the pressure, nozzle and any vacuum or clamping functions included in the selected unit. A similar machine outline does not establish the same operating configuration.

Technical notes

Compare tank capacity, nozzle arrangement, clamp range and operating sequence. Use the wax supplier's processing guidance to establish trial settings within the machine's range. The source's malformed injection-time field is not repeated as a usable machine specification.

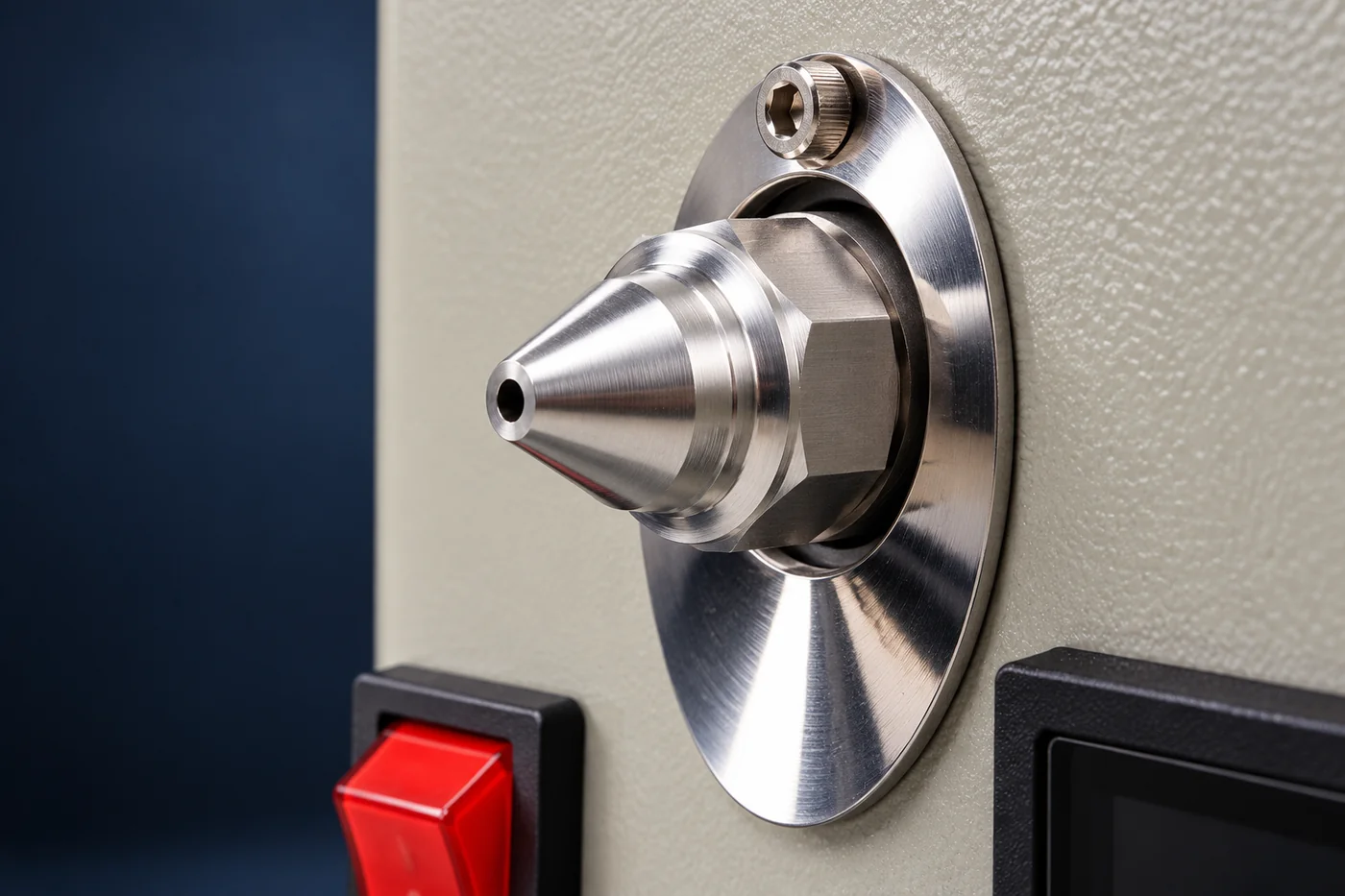

Close detail of an actual wax-injector nozzle and front connection
The actual nozzle and included functions define compatibility.

MANUFACTURING ROUTE · FEATURES AND CONTROL

Control Mould Filling and Pattern Removal Together

The selected wax is conditioned for the injector, while mould positioning, closure and any vacuum assistance prepare the cavity. Injection pressure, time and temperature work together to fill fine details without excessive flash. Relia's trial review then follows cooling and removal, because a completely filled pattern can still distort during demoulding or shrink outside the required size. Representative thin and thick features are compared using the actual wax and mould, and the accepted combination is retained for repeat pattern work.

Manufacturing and project sequence
  1. Prepare wax and mouldSelected formulation, clamp and nozzle interface
  2. Inject the patternTemperature, pressure/time and vacuum as applicable
  3. Cool and removePreserve thin detail and avoid distortion
  4. Compare repeat resultsFill, flash, dimensions and handling

04 · SPECIFICATION

Read temperature and capacity fields in context

Wax processing
Use settings appropriate to the selected formulation.
Machine specification
Confirm usable tank capacity and ordered electrical supply.

A controller range is not the required wax-processing temperature. Confirm usable tank capacity, selected electrical supply and the operating settings appropriate to the actual wax and machine configuration.

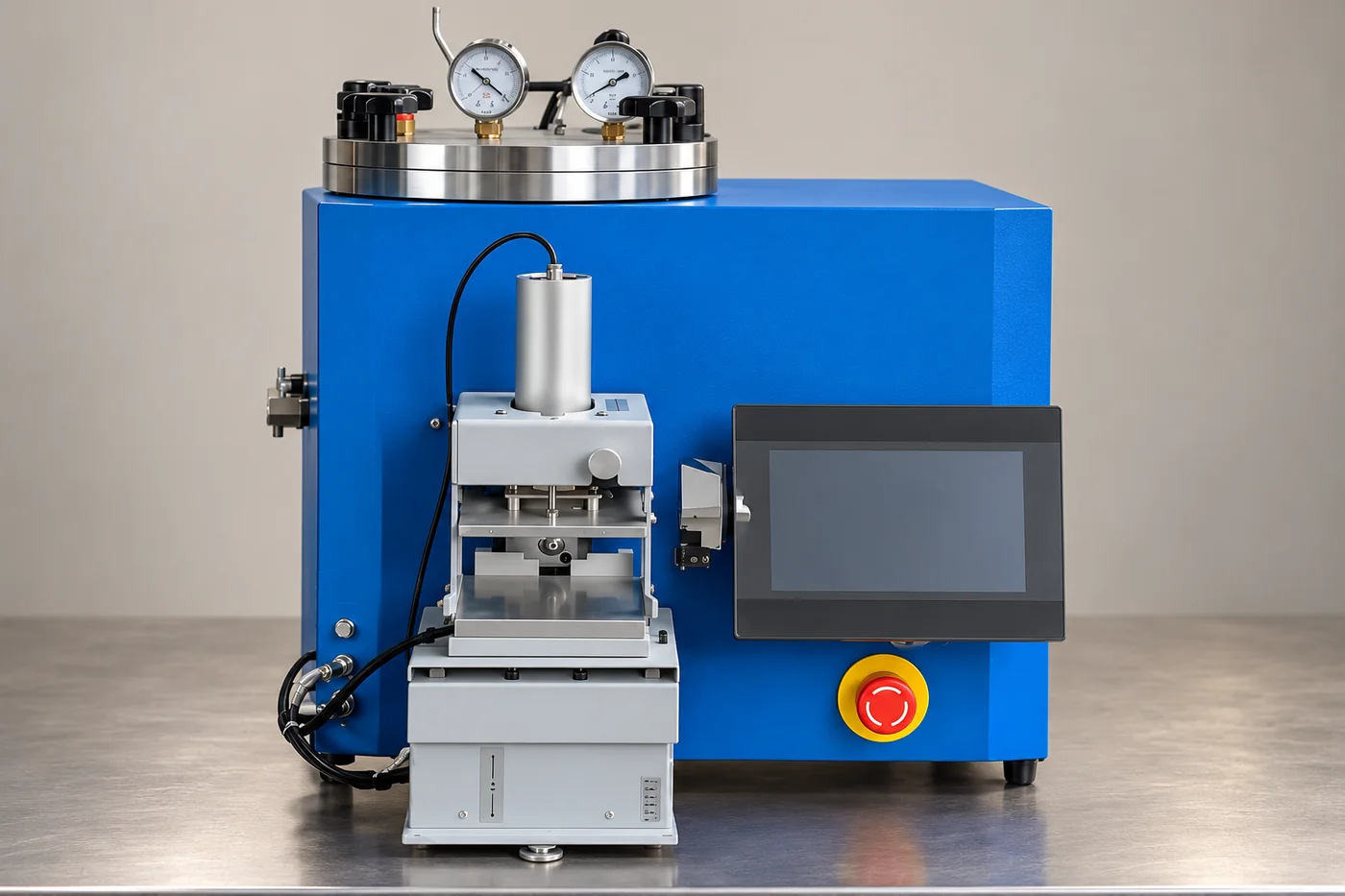

Complete blue automatic wax-injection machine reference with clamp and controls
Machine fields and material-process settings describe different requirements.

05 · ACCEPTANCE

Plan pattern trials around the required features

Assess representative patterns for fill, flash, shrinkage and removal without damage. Record the accepted mould, wax and settings together. A higher temperature or pressure is not automatically better, and a machine's maximum control setting is not a recipe for every formulation.

Checks that support approval
SetupSelected wax and mould
PatternRequired geometry and finish
CheckAgreed trial criteria
RecordConfiguration and accepted results

06 · SUPPLY

Keep accessories and operator support explicit

Included accessories
List fixtures, pumps, connections and tools.
Operator handover
Agree instructions and support for the actual unit.

List the nozzle fixtures, pump, power connection and any included tools. Operating instructions, training or remote support need an agreed scope for the actual unit.

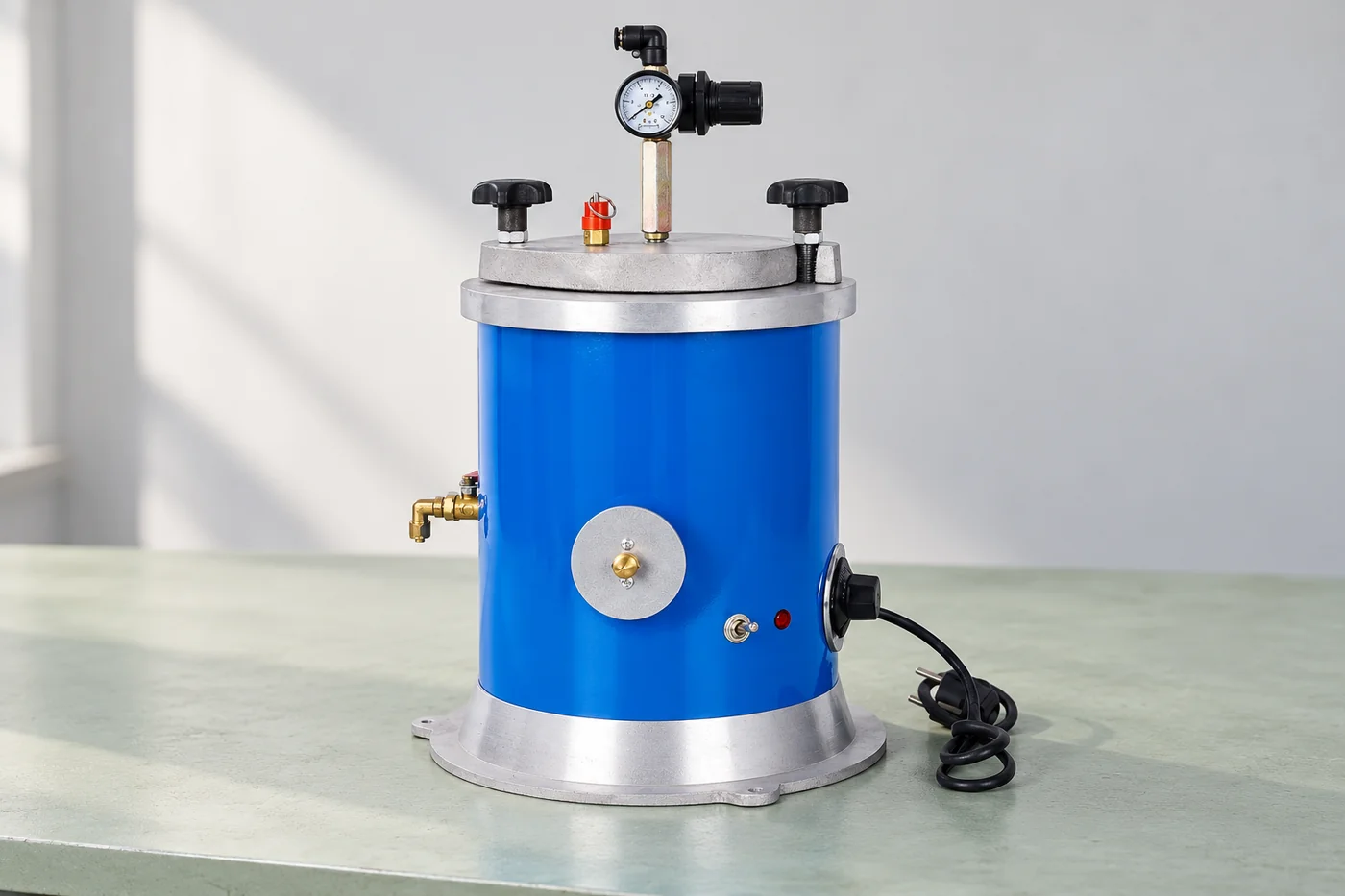

Complete blue cylindrical wax-injector reference with lid, gauge and valve
The supplied package includes only the items expressly agreed.

07 · PURCHASING

Quote the upgrade on one configuration basis

Retain the required functions, mould interface, capacity and handover work together. Make unresolved material or workshop inputs visible before accepting the wax-station package.

Technical notes

Provide mould dimensions, cavity count, pattern detail and the current wax formulation. Include the desired repeat output and whether mould clamping or vacuum assistance is needed. Thin details and thicker sections may need different pressure and temperature trials.

Options to compare
ScopeRetain
ProcessWax, mould and pattern target
MachineSelected functions and utilities
HandoverAccessories, documents and acceptance

RELIA · YOUR NEXT PROJECT

Share the mould, wax and pattern requirements

Send the existing-station details, mould interface, wax information and production task. Add available utilities and required accessories. We can review the selected wax-injection configuration and a relevant acceptance trial.

Start with these project details

  1. Wax and pattern information
  2. Mould and station interfaces
  3. Required functions and utilities
  4. Accessories and acceptance trial
