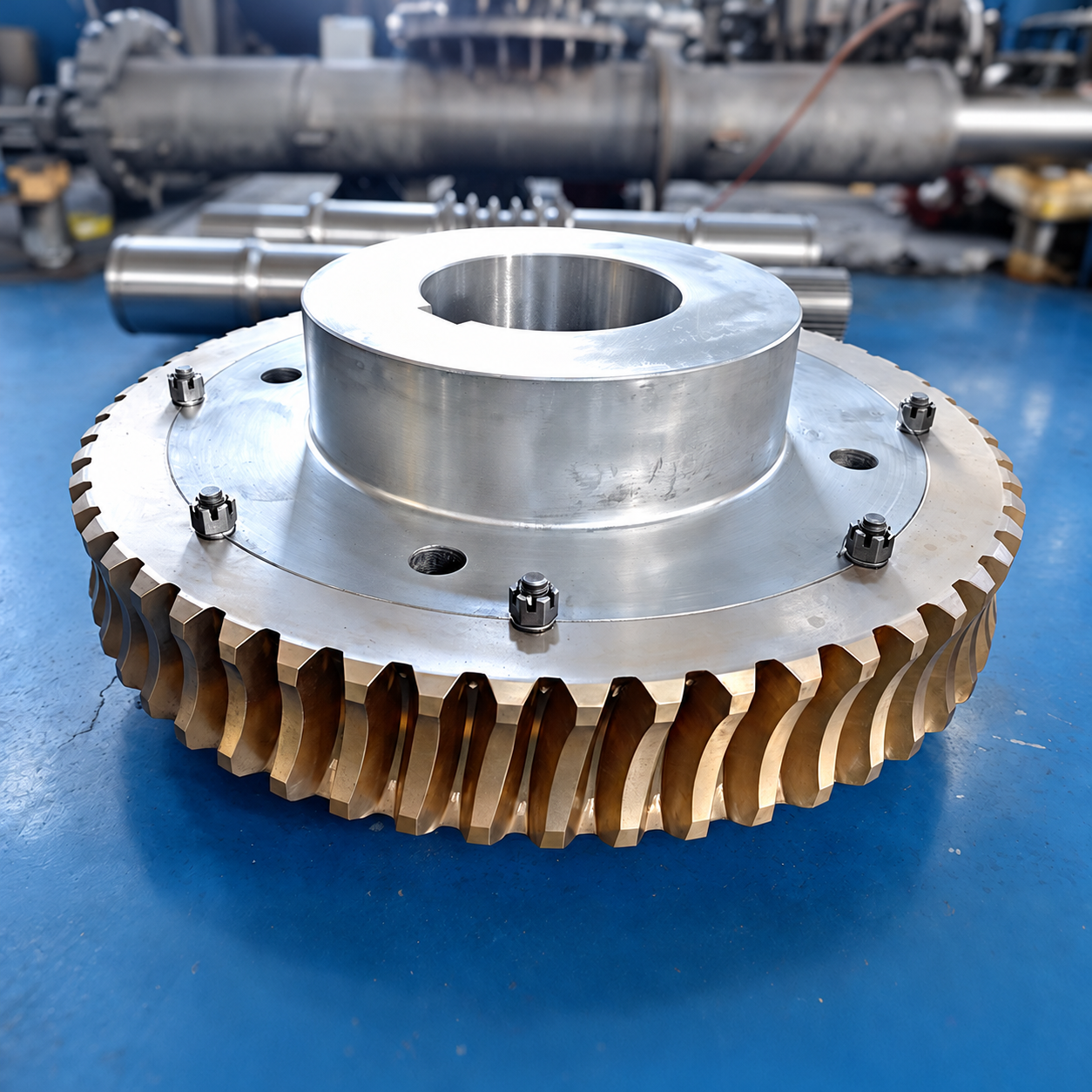

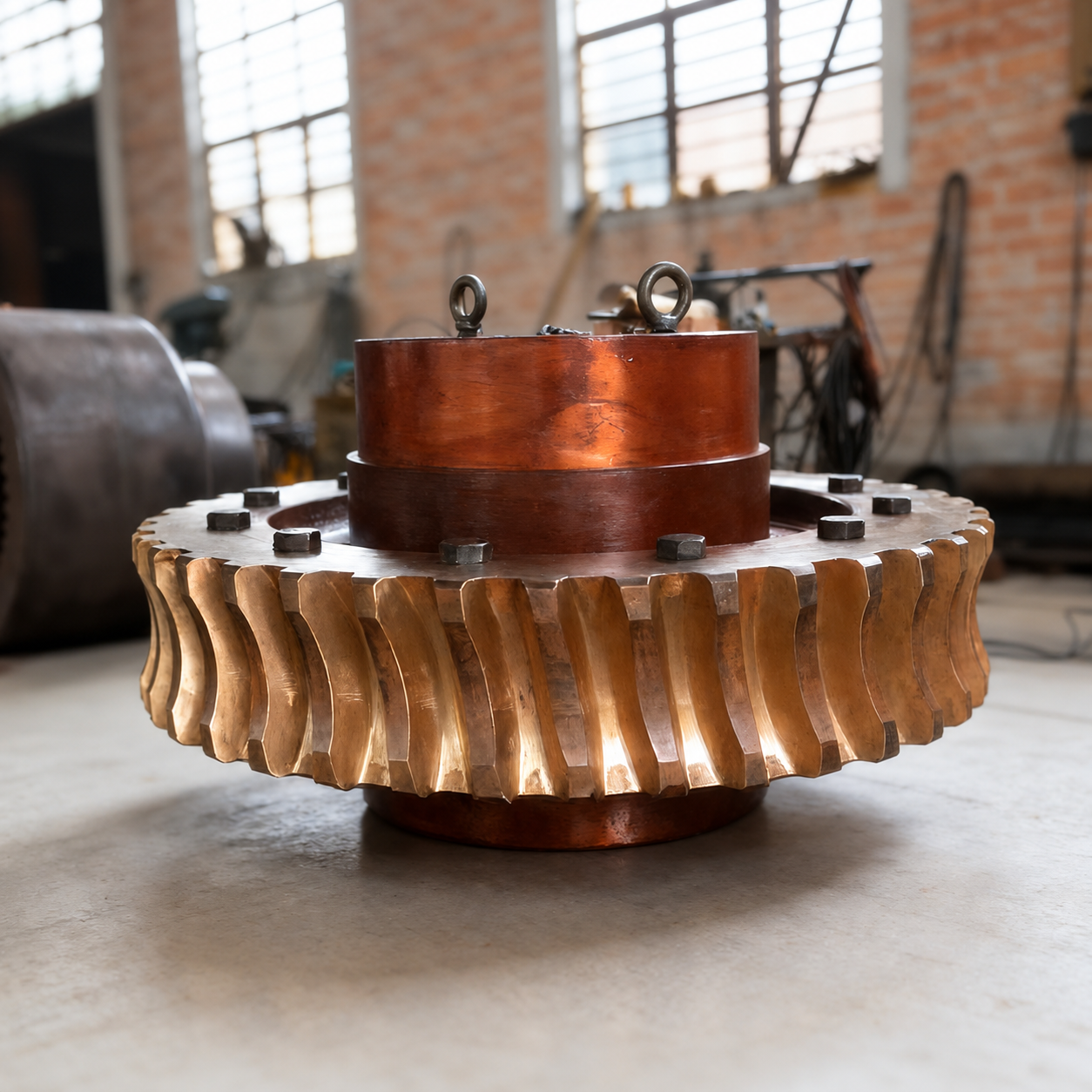

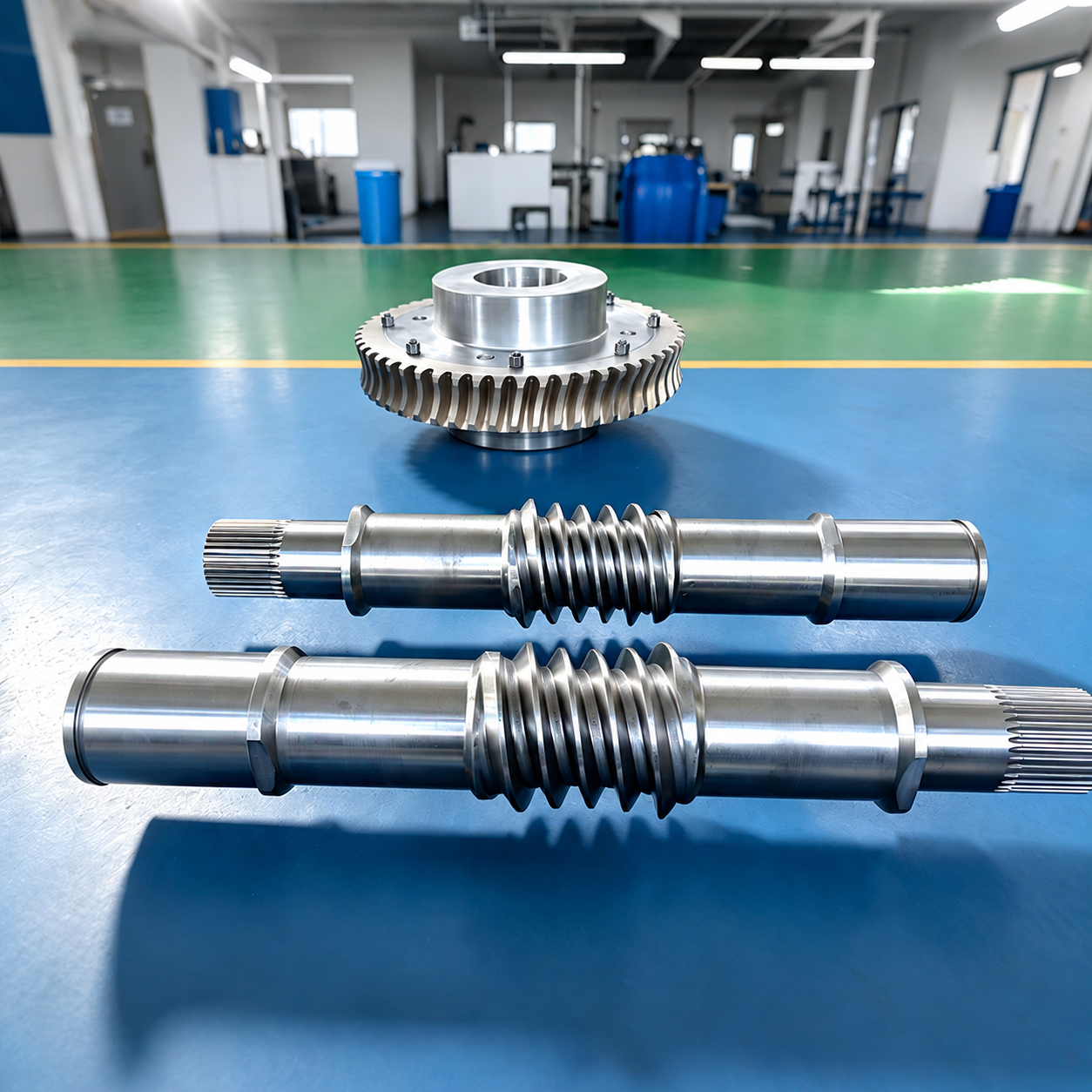

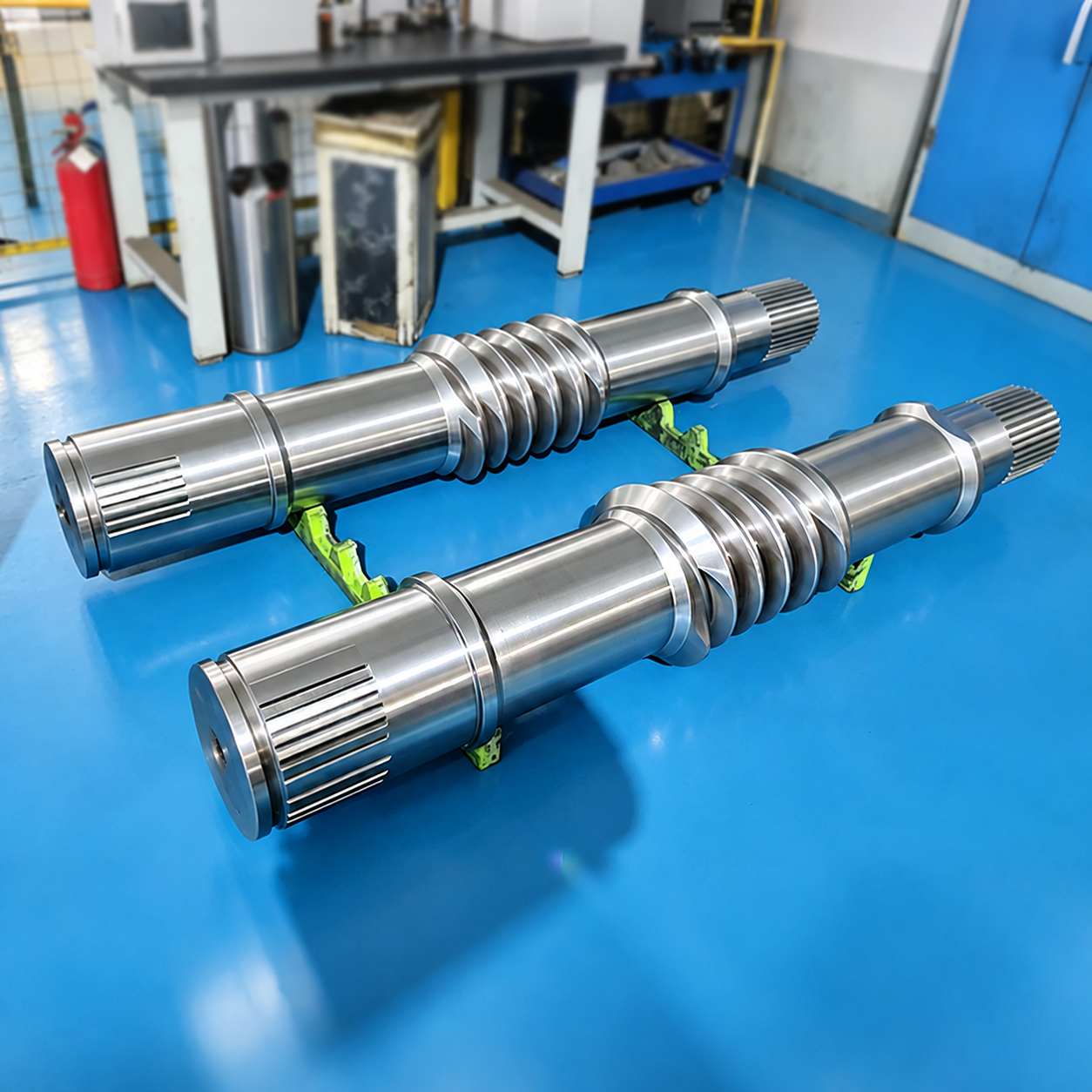

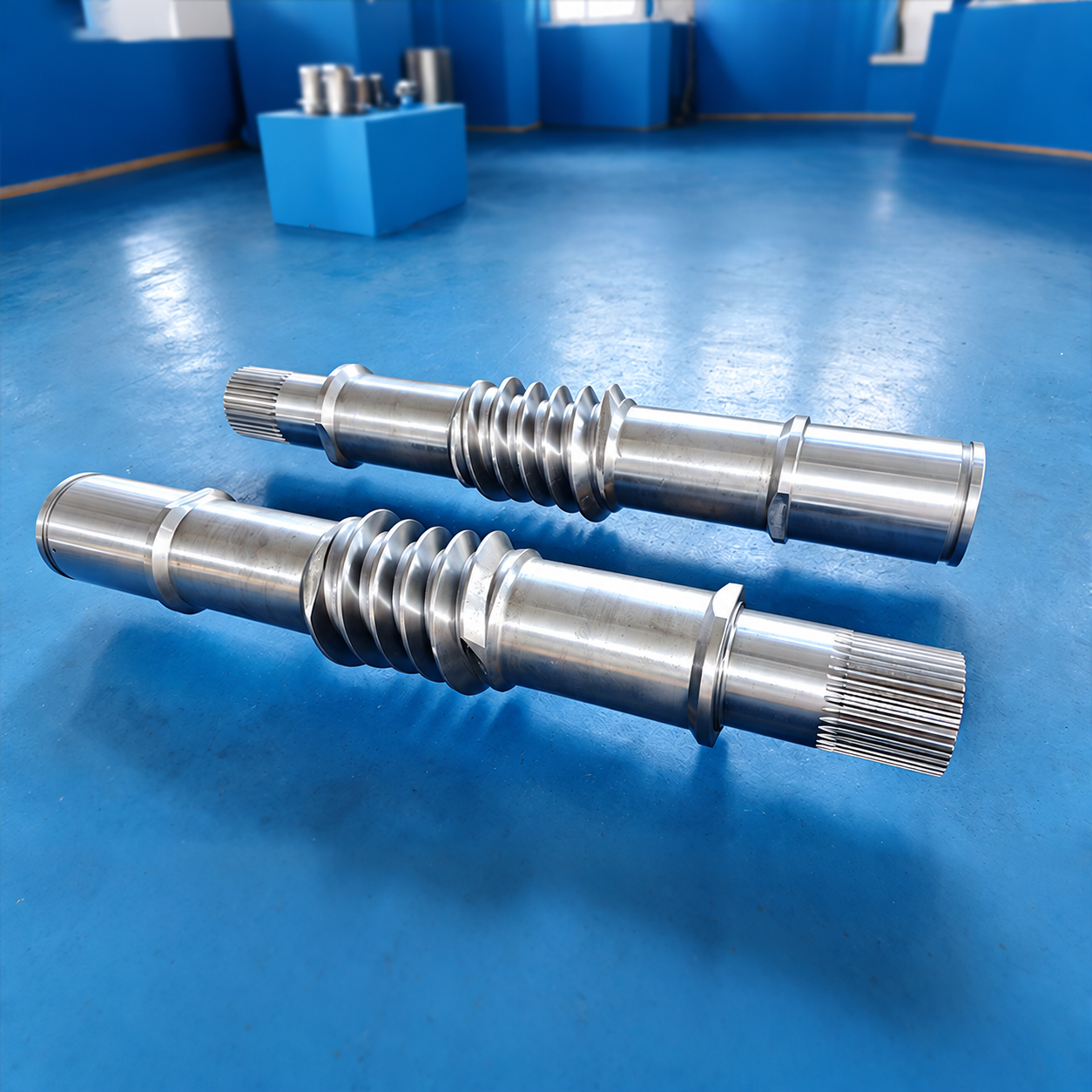

Custom High Precision Heavy-Duty Worm and Worm Gear Castings for Mining, Construction and Heavy Industry Machinery
Let’s define your requirement
Send a product link, drawing or short brief. We’ll work through the details with you.
- Confirm the specificationGrade or model, size and intended use.
- Define your orderQuantity, finish or configuration, and samples.
- Agree the quotation scopeIncluded work, key checks and delivery needs.
-
Component FormGear / Transmission Part
-
warranty1 YearshapeWorm
-
weight (kg)680video outgoing-inspectionProvided
-
machinery test reportProvidedcore componentsGear
-
materialAlloystandard or nonstandardNonstandard
-
directionCUSTOMMaterialAlloy
-
Product NameTransmission Worm GearSizeCustomized Accepted
-
ApplicationIndustryProcessCNC Machining
-
Surface treatmentCase HardenningEquipmentCNC Machining Centres
-
CustomAcceptableMateiralCast Iron
-
Heat treatmentTempering
Define a nonstandard transmission component through the worm and mating-gear geometry required by the machine. This custom work serves mining, construction and heavy-industry enquiries, with CNC machining, case hardening and tempering available for the requested component.
Start with the mating transmission geometry
The worm or worm gear should be considered in the context of its actual mating component. Define the tooth geometry, required ratio and interfaces for the intended assembly. These details give the custom component a specific transmission role, while the service duty establishes which acceptance requirements need to be agreed for that design.
Set the customized size and direction
Size and direction are customized for this nonstandard work. Identify the required dimensions and rotation direction rather than relying on a standard catalog configuration. The relationship between the worm, its mating gear and the machine interfaces should remain clear as those custom choices are settled.
Connect the material with machining and treatment
Cast iron is a material direction for the component, with the exact grade and treatment requirements to be agreed. CNC machining centers support the manufacturing route. Case hardening and tempering should be considered alongside the grade and the surface requirements defined for the worm or gear, without substituting an unspecified hardness or duty rating for the actual design criteria.
Use the machinery test report for acceptance
A machinery test report is provided for the custom work. Agree the geometry, interfaces and relevant transmission checks that the report should address for the requested component. Keeping those criteria connected to the mating design helps make the evaluation useful for the particular mining, construction or industrial machine project.
